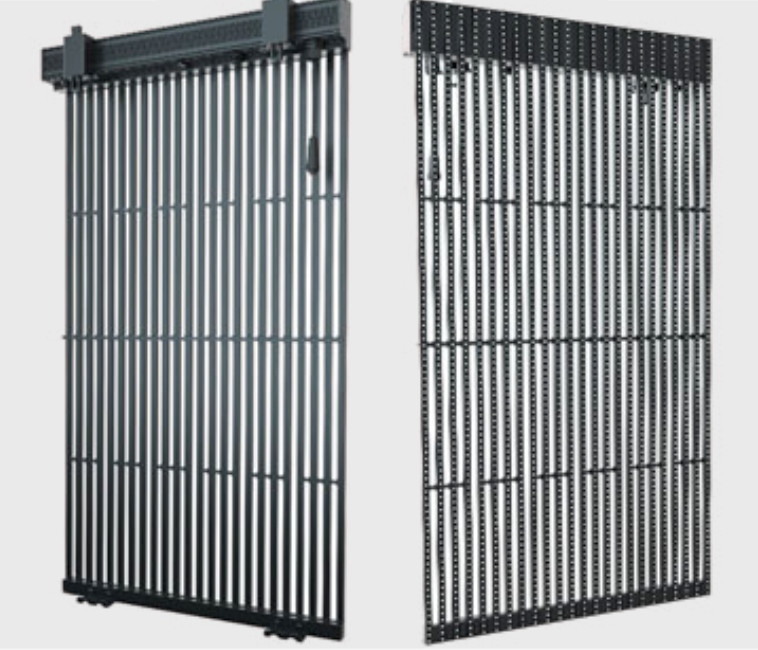

Outdoor P15.625mm LED Mesh Display IP67 Waterproof 6000nits High Brightness

 P15.625-15.625mm High Brightness Outdoor LED Mesh Display IP67 Waterproof

Quick details:

1, Pixel Pitch:15.625-15.625mm,  16.67mm, 25-25mm, 15.6-31.25mm, 31.25-31.25mm
2, DIP346 LED, high brightness and durable for outdoor use
3, Greyscale: 14bits
4, Cabinet size: 500x1000mm Die Cast Aluminum
5, Recommended Viewing Distance: 10-16m.

6, Cabinet Material: Die Cast Aluminum Cabinet, 18.5kg/㎡

7, Refresh Rate: 3840Hz

8, Ingress Rate: IP67 Outdoor Standard Connectors

9,Quality Certificate:CE, RoHS,FCC, ETL

10,Brightness:6000cd/sqm

11, Curve Installation: Yes, Concave and Convex Available

Specification:

Descriptions:

1. Advanced LED strip design, easy installation and service;

2. Strong Tail board design, ensures quick installation and smooth surface;

3. IP68 weather design and advanced heat sink shell, reliable and secure for long term use;

4. 7000-8500 nits high brightness, make your led billboard visible from anywhere;

5. Waterproof and wind resistant, perfect choice for outdoor long term use.

Application:

1. Light weight and small wind load for the grid screen, light weight is our most intuitive experience. Because of the screen grid, the display screen can be ventilated, so its wind load capacity is very strong.

2. High efficiency and low power consumption. The real energy saving comes from the led lamp with high brightness and high light efficiency and the power supply with high conversion efficiency.

3. Highly integrated. Highly integrated (built-in power supply and receiving card, each unit can work independently: power supply and signal line plug).

4. IP67 high protection level. Many traditional display screens will indicate the protection level, the number of front IP and the number of back IP, two data. The grid screen has a high protection level of IP67, because the concept of IP67 is soaking waterproof, that is, the product is soaked as a whole, and the safety and stability of use are guaranteed.

5. Easy to install. No steel structure installation, no need for air conditioning, can be installed in front, can also be installed in the back.

Our Services

1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

FAQ

Q1. How does the service work?

A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

Q2. What installation options do we have?

A: Wall mounting with metal structures.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
