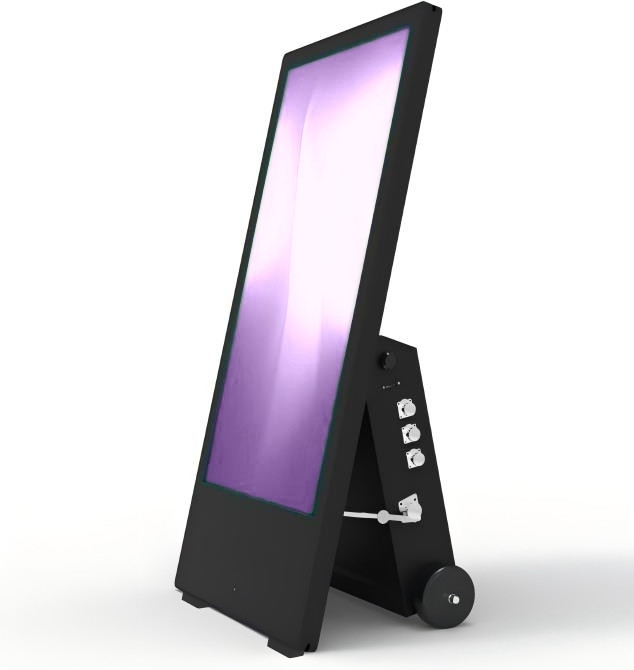

Features of 55inch LCD Portable Display with Battery
1. Brightness options range from 1,000 to 2,000 nits.
2. Optional Configuration for RAM and Storage: RAM 2GB + ROM 8GB/ RAM 4GB + ROM 16GB/ect.
3. Features a battery level indicator for easy monitoring and peace of mind during use.
4. Long lifespan of 60,000 hours.
5. High-temperature resistant, explosion-proof glass with dust, lightning, and rain protection rated IP55.
6. Strong endurance with 7 hours of charging for up to 14 hours of continuous use.
Specification of LCD Portable Display
| Item | Panel Size | 55inch TFT-LCD | |
| LCD panel | Resolution | 1920x1080(FHD) | |
| Size of view(mm) |
1209.6×680.4mm(W*H) |
||
| Ratio | 16:9 | ||
| Brightness(cd/m2) | 2000(Automatic photosensitivity) | ||
| Color | 16.7M | ||
| Viewing angel | 178° | ||
| Contrast | 4000:1 | ||
| Computer | Formate | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image( JPG, GIF, BMP, PNG) | |
| CPU | RK3288 | ||
| RAM | 2GB DDR4 | ||
| ROM | 8GB NAND(16G option) | ||
| USB | USB2.0 HOST (x2) | ||
| LAN | 10/100M Ethernet | ||
| Wi-Fi | 802.1 1b/g/n | ||
| Operation System | Android 5.1 | ||
| Speaker | 8Ω 5W x2 | ||
| Battery | Battery Technology | Using outdoor lithium iron phosphate battery, it has better lifespan, higher temperature resistance and higher safety factor than ternary battery. | |
| Charging time | 7 hours | ||
| Running time | More than 15 hours | ||
| Capacity | 50000mAh | ||
| Voltage | 24V | ||
| Consumption | 58~110W(Automatic photosensitive power consumption is a variable value) | ||
| power supply(optional) | 110V | 110V | |
| 220V | 220V | ||
| Brightness(optional) | 1500cd/m² | more than 20 hours | |
| 2000cd/m² | more than 15 hours | ||
| Package info. | Product size (WxHxD mm) | 8000mm/3700mm/15100mm | |
| Product Weight(kg) | 55kg | ||
| Working enviroment | Working temp. | -20℃ to 70℃ | |
| Storage Temp. | -30℃ to 80℃ | Max.Temperature 105℃ | |
| Working Hum. | 10% to 80% | ||
| Storage Hum | 5% to 95% | ||
| Accessories | Accessories | Romote contro, Charging adaptor and calbe | |
| Guarantee | Product | 1year | |
| Battery | 1year | ||
| Technical support | Whole life | ||
Dimensions
Advantages of LCD Portable Displays
1. Product Material: Constructed from fully galvanized steel, featuring an imported metal finish that is anti-magnetic, anti-static, and made from waterproof materials. The unit is rated IP55 for all-weather outdoor use, offering protection against water, dust, theft, and explosion.
2. Electrical Protection: Features strict electrical safeguards, including leakage protection, overload protection, overvoltage protection, lightning protection devices, and over-temperature protection.
3. Audio: Equipped with a dual-channel, surround sound amplifier system, delivering an output power of 8 ohms at 2×10W.
4. Superior Light Sensor System: Automatically adjusts ambient brightness to control glare, ensuring clear image display even in direct sunlight.
