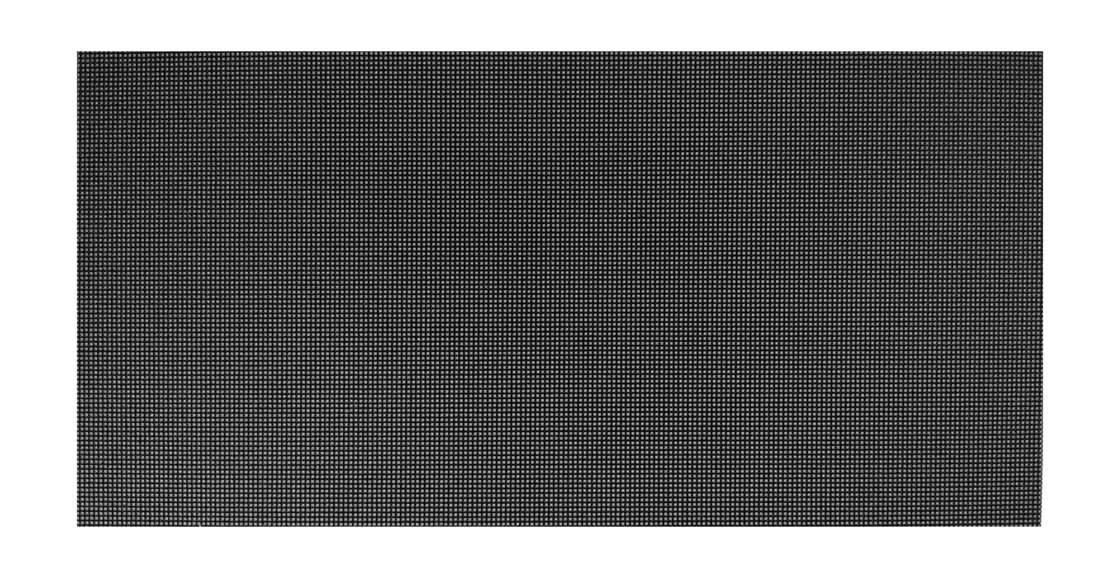

Indoor Flexible LED Screen P1.25mm 320x160mm Module Creative LED Display Refresh Rate 3840Hz
Indoor P1.25 Flexible LED Screen Specifications
| Mini 1.25 | |
| Pixel Pitch | 1.25mm |
| Pixel Configuration | SMD1010 |
| Pixel Density | 640,000 pixels/m2 |
| Module Dimensions(W x H) (mm) | 256 x 128 |
| Module Resolution | 177 x 88 |
| Weight per Module |
0.3kg |
| Maximum Power Consumption of Module | ≤20W |
| Brightness | 650 nits |
| Refresh Rate | 3,840Hz |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front and rear |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/48 Scan |
| Power Supply Method |
5V/40A 5V/60A |
| Optimal Viewing Distance |
1-12m |
.
Quick detail Of Indoor Flexible LED Screen
1. Pixel Pitch: 1.25mm
2. Module Thickness: 7.4mm
3.Nation Star or Kinglight SMD LEDs, high contrast and high reliability
4.Greyscale: 16bits
5. Module size: 320x160mm
6. Service type: Magnetic front service
7. PSU: MEANWELL or G energy brand
8. Ingress Rate: IP43 indoor use and magnetic front service
9. Quality Certificate:CE, RoHS,FCC, ETL
10. Ambient Temperature: Storage: -35°C to +85°C; Operating: -20°C to +50°C
Soft Film Modules in Creative Projects: Advantages
1. Lightweight and Flexible: Soft film modules are significantly lighter and more flexible than traditional LED panels, allowing for innovative shapes and installations that can adapt to various environments and artistic visions.
2. Seamless Integration: The design of soft film modules enables seamless integration into creative projects, making it easier to create large, continuous displays or unique forms without visible seams, enhancing visual appeal.
3. High Image Quality: These modules provide excellent image quality with vibrant colors and high resolution, making them ideal for artistic displays, exhibitions, and immersive environments where visual impact is crucial.
4. Easy Installation and Maintenance: Soft film modules are typically easier to install and maintain due to their lightweight nature and flexible design. This reduces setup time and costs, allowing for quicker project execution and adjustments as needed.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.
A: Either stacking on the ground or hanging is supported.
A: Low MOQ, modules or complete screen order are all welcome.
A: Airfreight, sea and train transport according to different regions.
A: Mostly we accept telegraphic transfer, 50% before production and 50% balance before shipment.
A: We manage quality starting from incoming material, all LEDs, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure of stable quality and performance.
A: We provide 1-3 years warranty for different products. Free Repair or Exchange of Defective Parts with One-way Shipping
