Outdoor LED Billboard
>
|
|
| Place of Origin | China |
| Brand Name | TBC |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number | E10-A |

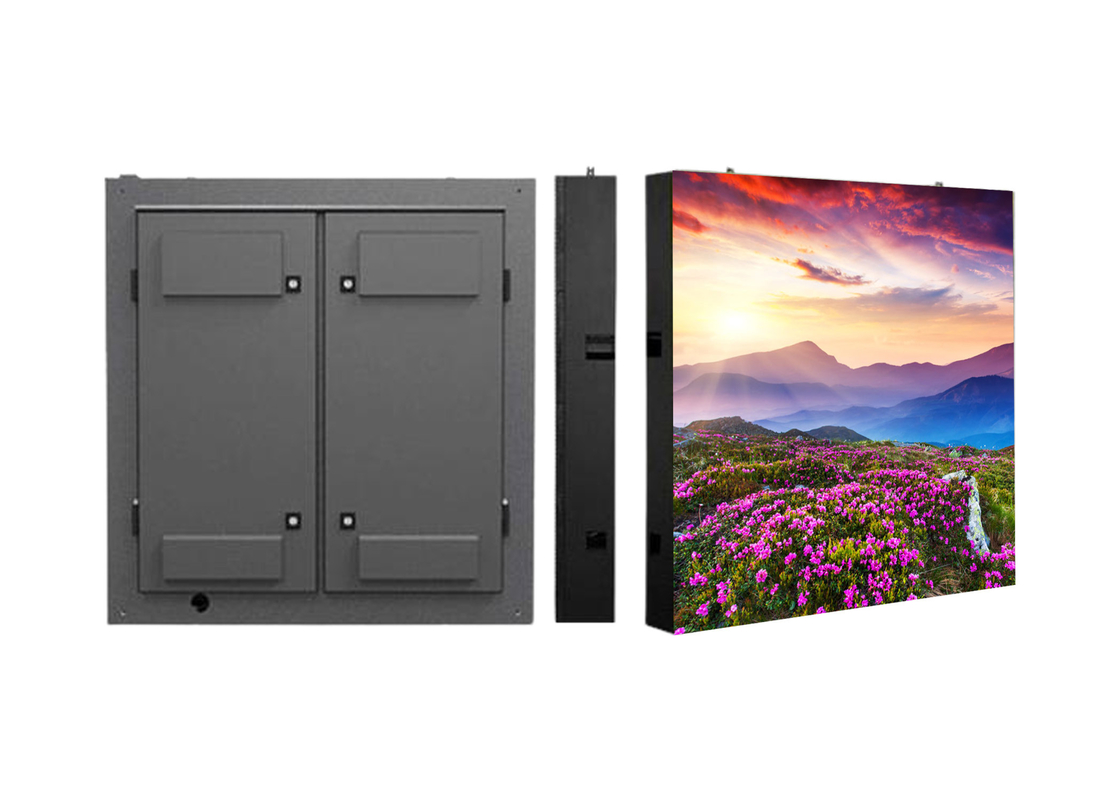

Outdoor Front IP65 LED Billboard with 3840Hz Refresh Rate 43Kg Panel Weight
Features of Outdoor LED Billboard
1. High brightness and clarity
The use of high brightness technology to ensure that the content can be clearly displayed in the sun, providing bright colors and delicate pictures to enhance the viewing experience of the audience.
2. Energy saving and environmental protection
The LED display itself is energy-saving, low power consumption, the operating voltage and current are 2-3.6V and 0.02-0.03A respectively, the power consumption does not exceed 0.1W, and has the characteristics of anti-corrosion, waterproof, moisture-proof, lightning protection, shock-proof, etc., to adapt to various harsh outdoor environments.
3. High coverage and large audience
The outdoor LED display is usually installed at a high height, with large visibility, and can be clearly viewed within 160 degrees in the horizontal direction, covering a wider range and reaching more audiences.
4. Long life
Under the appropriate current and voltage, the service life of the LED can reach 100,000 hours, ensuring the stability and reliability of the display.
Specifications of Outdoor LED Billboard
| No. | Parameter | Value |
| 1 | Pixel pitch | 10mm |
| 2 | Brightness | ≥6500nit |
| 3 | Pixel configuration | SMD3535 |
| 4 | Gray scale | 65536 levels per color |
| 5 | Refresh rate | 3840HZ |
| 6 | Pixel matrix per panel | 120x 120 |
| 7 | Pixel matrix per sq.m | 10000 |
| 8 | Viewing angle (H /V) | 140/140 deg. |
| 9 | Power consumption (Max /Avg) | 950 / 330 |
| 10 | Protection Level | IP65 |
| 11 | Input voltage (AC) | 110/240 |
| 12 | Panel size (W x H x D) | 960 x960x 120mm |
| 13 | Model size (W x H) | 320 x160mm |
| 14 | Panel material | Cold Steel |
| 15 | Panel weight | 43Kg |
| 16 | Working temperature/Storage temperature | -40℃ to 70℃/-55℃ to 120℃ |
| 17 | Life time | ≥100,000 hours |
| 18 | Signal input format (with video processer) | VGA, DVI,RGBHV,PbPr(HDTV),Composite, S-Video, TV |
Advantages of Outdoor LED Billboard
1.High flatness and consistency
Outdoor SMD type with IP68 waterproof cabinet, module size 320*160mm, panel size 960*960mm, can be customized easier, white balance brightness 6500cd/m' adjustable
2. New Upgrades
1) Upgrade rain cover for air vent, better protection against heavy rain.
2) Put the rubber fabric into all modules to make waterproof completely.
3) AC fan make good heat dissipation and led screen working stable.
4)Support customizing cabinet to curve led screen.
3. Better 4"H" performance
1) High brightness: 6000nits
2) High gray scale: 65536 levels
3) High refresh rate: 3840Hz
4) High contrast ratio: 3000:1.
1. Commercial and shopping centers
Outdoor solid mounted LED displays are very common in large malls and shopping centers to promote products, promotional information and attract people. Due to their high brightness and vivid colors, these displays are able to attract customers' attention both day and night, increasing traffic and sales in malls.
2. Sports venues
Sports venues are also an important application place for outdoor fixed LED displays. During sporting events, these displays are used to display live action, advertising and other information in real time to provide viewers with a comprehensive sports viewing experience.
3. Public transportation
Public transport stations, such as bus stops and subway stations, are also important application areas for outdoor fixed LED displays. These displays are used to play various types of advertising, announcements, weather forecasts and other information to provide practical services and entertainment for waiting passengers, while increasing brand exposure.
