Stadium Perimeter LED Display
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P6.25, P8.33, P10 |

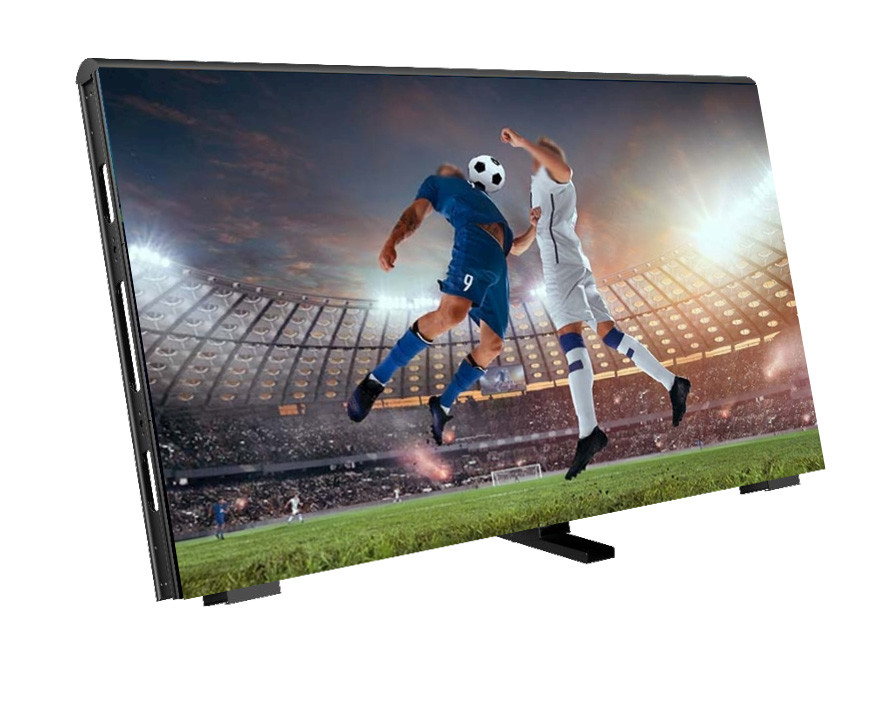

Stadium Perimeter LED Display With High Energy Efficiency And High Flame Retardant Level
Parameters of Stadium Perimeter LED Display
| P6.25 | P8.33 | P10 | |
| SMD type | SMD2727 | SMD2727 | SMD2727 |
| Physical density(dots/sqm) | 25600 | 14400 | 10000 |
| Module resolution | 64X48 | 48X36 | 40X30 |
| Module dimension | 400X300 | 400X300 | 400X300 |
| Module quantity(W×H) | 4 X 3 | 4 X 3 | 4 X 3 |
| Panel resolution(W×H) | 256 X 144 | 192 X 108 | 160 X 90 |
| Panel size(mm) | 1600 X 900 | 1600 X 900 | 1600 X 900 |
| Flatness(mm) | ≤0.015 | ≤0.015 | ≤0.015 |
| Maintenance mode | Front & Rear | Front & Rear | Front & Rear |
| Brightness(nits) | 7000 | 7000 | 7000 |
| Color temperature(K) | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional |
| Grey scale | 65536 | 65536 | 65536 |
| Viewing angle(V/H) | 160°/ 160° | 160°/ 160° | 160°/ 160° |
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 |
| Frame-changing frequently | 50/60Hz | 50/60Hz | 50/60Hz |
| Drive mode |
Constant current 1/6 scale |
Constant current 1/3 scale |
Constant current 1/2 scale |
| Refresh rate | 3840 | 3840 | 3840 |
| Max power consumption(W/m2) | 600-800 | 600-800 | 600-800 |
| Avg. power consumption(W/m2) | 100-200 | 100-200 | 100-200 |
| Electric power requirements |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
AC90-264V 47-63Hz |
Features of Stadium Perimeter LED Display
1. High refresh, low light and high gray, the selection of high refresh rate display can ensure the smooth continuity of large-scale sports events live picture, the human eye is more comfortable and natural, meet the requirements of different occasions live shooting, take pictures without water ripples.
2. Screen protection performance is high, for the stadium, LED screen heat dissipation is very important. Especially in the changeable climate of the outdoor screen, high flame retardant level and protection level is necessary.
3. The overall brightness contrast and energy efficiency is high, for the LED screen of the stadium, brightness, contrast, energy saving effect need to be considered comprehensively, LED display products with high energy efficiency design are guaranteed in safety, stability and service life.
4. The viewing Angle is wide, which can ensure that the audience in different directions of the stadium has a good viewing experience.
Advantages of Stadium Perimeter LED Display
1. Enhance the spectator experience
Stadium Perimeter LED Display broadcasts and rebroadcasts matches in real time, providing a high-quality visual experience. It can also broadcast advertisements, event promotion and other content to provide additional commercial value to the audience.
2. Provide an interactive medium
As an interactive medium, Stadium Perimeter LED Display can increase the interest and participation of the event.
3. Ensure the safety of spectators and athletes
Stadium Perimeter LED Display acts as a barrier between the audience and the pitch, which can prevent the audience from causing conflicts due to emotion or other reasons. The fence can prevent the players from going out of bounds during the running process and ensure the safety of the players.
4. High security and stability
Stadium Perimeter LED Display products usually have high safety, refresh rate and stability, and excellent water, dust and impact resistance.
Applications of Stadium Perimeter LED Display
Stadium Perimeter LED Display is the standard configuration of large sports events, widely used in football fields, basketball courts, rugby fields and racing fields, etc., for real-time broadcast and replay of the game, enhance the audience's watching experience. At the same time, they also serve as interactive media, as well as display advertising and branding, creating additional commercial value for the event.
