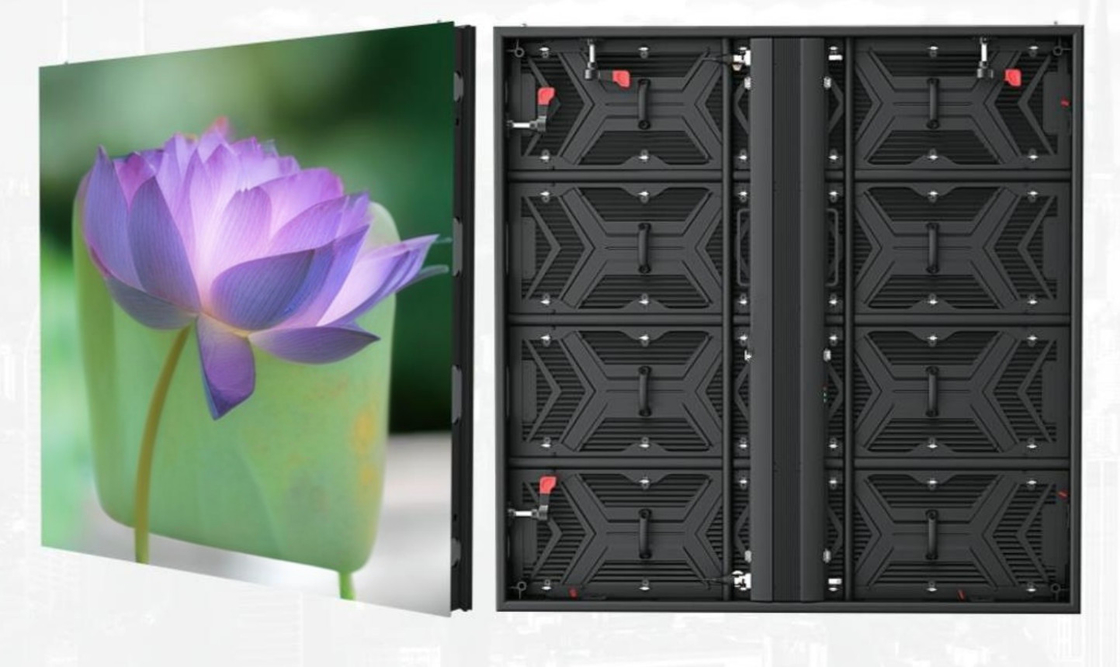

Outdoor LED Advertising Billboard T Seies P6.25 Ultra Light Weight 22.5KG
1. Specification Of Outdoor LED Advertising Screen
|
Product Parameters |
|
| Mode | T6.25mm |
| LEDs | 1R1G1B |
| LED type | SMD2727 |
| Pixel pitch | 6.25mm |
| Module size | W500×H250mm |
| Unit resolution | 80×40 dots |
| Panel Size | 1000×1000×83mm |
| Panel resolution | 160×160 |
| Resolution | 25,600dots/㎡ |
| Brightness | ≥6000nit |
| Weight | 22.5KG/㎡ |
| Max consumption | 650W/㎡ |
| Adv consumption | 100-200W/㎡ |
| Viewing angle | H140°/V160° |
| Protection level | IP65 |
| Thickness | 83mm |
|
Heat dissipation |
Convective heat dissipation |
| Wind dissipaion | Level 12 |
| Power supply | Power supply with PFC |
| Installation | Fast install |
| Fire safety | 10S/unit |
| Fire resistance | Full VO grade |
| Service | Front,Back |
| Control mode | steady state |
| Color temperature | 1000-18500K |
| Refresh rate | 3840Hz |
| Working temperature | -20℃ to 60℃ |
| Storage temperature | -20℃ to 60℃ |
| Life time | ≥100,000 hours |
| Input voltage | AC110-220V |
| Grey grade | 16bit |
| Seismic capability | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
2. Outdoor LED Advertising Billboard T SeiesQuick details:
1. Pixel Pitch: 6.25mm
2. SMD2727 LED, high brightness≥6000nits and durable for outdoor use;
3. Greyscale: 16bits;
4. Cabinet size: 1000x1000×83mm Aluminum Cabinet
5. Recommended Viewing Distance: 6m.
6. Cabinet Material: Die-casting aluminum, 22.5kg per Panel
7. Refresh Rate: 3840Hz
8. Ingress Rate: IP65 Outdoor Standard Connectors;
9. Brightness: ≤10000nit
3. TBC LED T Series outdoor led advertising billboards Features are:
1. Advanced Display Technology
Our LED displays feature a refined pixel pitch of 3840Hz, ensuring smooth and flicker-free visual performance. With a color depth of 16 bits, these displays deliver rich and vibrant color reproduction for captivating visual experiences. The high-quality components and advanced engineering behind these displays contribute to their exceptional reliability and longevity.
2. Streamlined Installation with Locking Cabinets
The LED cabinets feature durable stainless steel locks, providing an added layer of security for the components inside. This robust design ensures that the cabinets remain securely closed, protecting the internal electronics from unauthorized access. The corrosion-resistant properties of stainless steel enhance the longevity and reliability of the locking mechanism, making it ideal for various environments.
3. Dustproof and waterproof grade: IP65.
The effective waterproofing and sturdy design provide assurance that your display will function reliably, regardless of environmental challenges.
4. Hard Link and support Hot-Swap maintenance
The hot-swap capability allows for the quick replacement of components without shutting down the entire system, minimizing downtime. This combination of secure connections and flexible maintenance options enhances the overall efficiency and performance of the display.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the service work?
A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.
A: Wall mounting with metal structures.
A: Low MOQ, modules or complete screen order are all welcome.
A: Air freight, sea and train transport according to different region.
A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.
A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
