HD LED Display
>
|
| Place of Origin | China |
| Brand Name | TBCLED |
| Certification | FCC，CE，ROHS |
| Model Number | HD LCD |

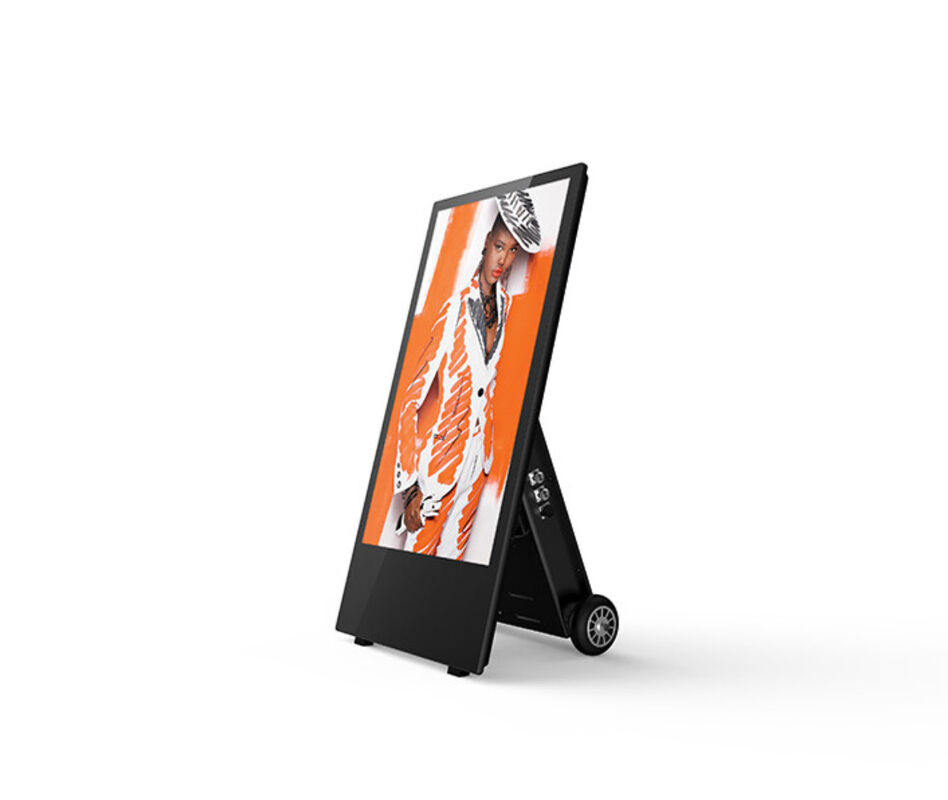

LCD Digital posters are popping up outside restaurants, cafes, bars and shops to attract new customers from the high street. It's the best digital signage solution for small coffee shops, takeaways and food courts to lure their customers to their restaurants with amazing offers. Our unique digital a-board is designed to engage customers more effectively, while also allowing them to easily fold and bring into your premises if needed.
Advantages
Foldable and Portable Design
All-round movement and rotation installation of special casters,
one person can operate flexibly, saving time and effort.
Lock Bar
Specification
| Item | Panel Size | 43inch TFT-LCD | |
| LCD panel | Resolution | 1920x1080(FHD) | |
| Size of view(mm) | 940.896(H)x 529.254(V) | ||
| Ratio | 16:9 | ||
| Brightness(cd/m2) | 2000(Automatic photosensitivity) | ||
| Color | 16.7M | ||
| Viewing angel | 178° | ||
| Contrast | 4000:1 | ||
| Computer | Formate | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image( JPG, GIF, BMP, PNG) | |
| CPU | RK3288 | ||
| RAM | 2GB DDR4 | ||
| ROM | 8GB NAND(16G option) | ||
| USB | USB2.0 HOST (x2) | ||
| LAN | 10/100M Ethernet | ||
| Wi-Fi | 802.1 1b/g/n | ||
| Operation System | Android 5.1 | ||
| Speaker | 8Ω 5W x2 | ||
| Battery | Battery Technology | Using outdoor lithium iron phosphate battery, it has better lifespan, higher temperature resistance and higher safety factor than ternary battery. | |
| Charging time | 8 hours | ||
| Running time | More than 15 hours | ||
| Capacity | 62000mAh | ||
| Voltage | 24V | ||
| Consumption | 58~110W(Automatic photosensitive power consumption is a variable value) | ||
| power supply(optional) | 110V | 110V | |
| 220V | 220V | ||
| Brightness(optional) | 1500cd/m² | more than 20 hours | |
| 2000cd/m² | more than 15 hours | ||
| Package info. | Product size (WxHxD mm) | 8000mm/3700mm/15100mm | |
| Product Weight(kg) | 55kg | ||
| Working enviroment | Working temp. | -20℃ to 70℃ | |
| Storage Temp. | -30℃ to 80℃ | Max.Temperature 105℃ | |
| Working Hum. | 10% to 80% | ||
| Storage Hum | 5% to 95% | ||
| Accessories | Accessories | Romote contro, Charging adaptor and calbe | |
| Guarantee | Product | 1year | |
| Battery | 1year | ||
| Technical support | Whole life | ||
Dimensions
