Creative LED Display
>
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P2 |

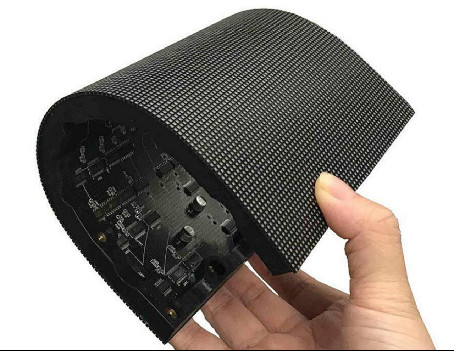

Indoor Flexible LED Screen P2mm 320x160mm Module Creative LED Display Refresh Rate 3840Hz
Specification
| Mini 1.8 | Mini 2 | Mini 2.5 | |
| Pixel Pitch | 1.8mm | 2mm | 2.5mm |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2121 |
| Pixel Density | 289,050 pixels/m2 | 262,144 pixels/m2 | 160,000 pixels/m2 |
| Module Dimensions(W x H) (mm) | 320 x 160 | 320 x 160 | 320 x 160 |
| Module Resolution | 177 x 88 | 160 x 80 | 128 x 64 |
| Weight per Cabinet | 1kg | 1kg | 1kg |
| Average Power Consumption | 300 W /Sqm | 300 W /panel | 300 W /panel |
| Max Power Consumption | 800 W /Sqm | 800 W /panel | 800 W /panel |
| Brightness | 800 nits | 800 nits | 800 nits |
| Refresh Rate | 3,840Hz | 3,840 Hz | 3,840 Hz |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front and rear | Front and rear | Front and rear |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/43 Scan | 1/32 Scan | 1/25 Scan |
Advantages of Indoor Flexible LED Screen
1. Lightweight and flexible: Soft film modules are generally lightweight, easy to install and move, and are suitable for various indoor environments.
2. High Image Quality: They provide excellent image quality and color reproduction, meeting high visual standards.
3. Customization: These modules can be customized to fit different shapes and sizes, adapting to various design needs.
4. Easy maintenance: Compared with traditional displays, maintenance is simpler, reducing repair costs and downtime.
5. Energy saving: Usually using LED technology, they consume less electricity and are more environmentally friendly.
6. Good light transmittance: In some designs, soft films can provide light transmittance effects, enhancing the visual depth of the space.
7. Versatile applications: Suitable for various environments such as exhibitions, events and retail spaces, helping to create a unique atmosphere.
Quick detail Of Indoor Flexible LED Screen
1. Pixel Pitch: 1.8mm, 2mm, 2.5mm
2. Nation Star or Kinglight SMD LEDs, high contrast and high reliability
3. Greyscale: 16bits
4. Module size: 320x160mm
5. Service type: Magnetic front service
6. PSU: MEANWELL or G energy brand
7. Refresh Rate: 1920-3840Hz
8. Ingress Rate: IP43 indoor use and magnetic front service
9. Quality Certificate:CE, RoHS,FCC, ETL
10. Brightness:>800-1000cd/sqm
Feature Of Indoor Flexible LED Video Wall
1. Curved Design: Flexible LED panels can be bent and shaped to fit a variety of configurations, allowing for creative and dynamic installations.
2. High Resolution: They offer high pixel density for crisp images and vibrant colors, ensuring excellent visual quality.
3. Lightweight and Slim: These panels are designed to be lightweight and slim, making installation easier and reducing structural load.
4. Seamless Display: Minimal bezels provide a seamless viewing experience, ideal for large displays.
5. Easy Installation: Modular design allows for quick and straightforward installation, whether in standard or custom shapes.
6. Wide Viewing Angle: Flexible LED video walls maintain image clarity and color accuracy from every viewing angle.
8. 7. Energy Efficient: Many models use energy-efficient LED technology, providing bright displays while reducing power consumption.
9. Versatile Applications: Suitable for a variety of environments, including retail spaces, events, corporate environments, and entertainment venues.
10. Interactive Features: Some models can integrate touch technology or responsive features for interactive displays.
11. Durability: Designed to withstand indoor conditions, they are typically resistant to impact and abrasion, ensuring long-lasting performance.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.
A: Either stacking on the ground or hanging is supported.
A: Low MOQ, modules or complete screen order are all welcome.
A: Airfreight, sea and train transport according to different regions.
A: Mostly we accept telegraphic transfer, 50% before production and 50% balance before shipment.
A: We manage quality starting from incoming material, all LEDs, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure of stable quality and performance.
A: We provide 1-3 years warranty for different products. Free Repair or Exchange of Defective Parts with One-way Shipping
