Indoor LED Video Wall
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P1.95 |

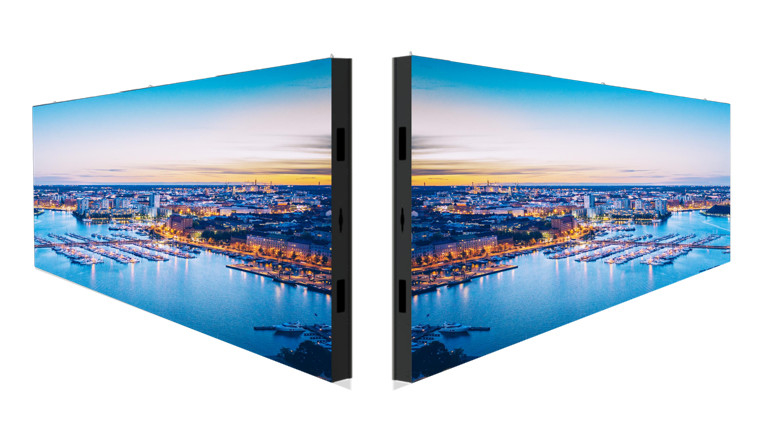

High Reliability Indoor Ultra Slim LED with Customizability and Full Front Maintenance
Advantages
1. Ultra-thin design
The use of ultra-thin design, can effectively save space, make it a part of the interior decoration, will not bring heavy feeling to the indoor environment.
2. Energy saving and environmental protection
Compared with traditional display equipment, indoor LED displays have relatively low performance and can reduce a small amount of energy consumption. In addition, they use no harmful substances and are more friendly to the environment.
3. High reliability
Indoor LED display using advanced technology and materials, with high reliability and durability. It has a long life and can operate stably for a long enough time to reduce maintenance and replacement costs.
4. Customizability
Full-color LED display can be customized according to needs, including size, shape, resolution and other aspects of adjustment. This makes it suitable for a variety of different scenarios and uses.
Features
Appilication
1. Shopping Malls
Shopping mall scene for the majority of consumer groups, you need to use some indoor LED display to display some brand advertising content or spread some shopping mall activity information, so that consumers receive relevant information in a timely manner, and with the display of a variety of ways to attract attention, so that the advertising content passed to more people.
2. Airports
As an important large-scale transportation hub center, people gather here, the media arrival rate is high, consumers will take the initiative to receive advertising information in this closed scene, indoor LED display is placed here, with novel advertising content to attract people, and repeated transmission, can make the advertising content deeply.
3. Exhibition Hall
At present, many exhibition halls will choose indoor LED display for display, because the indoor LED display fits the display needs of the exhibition hall, the display has high clarity, the screen area is large and vivid, and the content of the exhibition hall can be displayed more clearly.
Specifications
| P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 | |
| LED type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Physical density(dots/sq.m) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 160X160 | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 |
| Module dimension(mm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |
| Module quantity(W×H) | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 |
| Panel resolution | 640X160 | 512X128 | 400X100 | 384X96 | 336X84 | 256X64 |
| Maintenance | Front access service | Front access service | Front access service | Front access service | Front access service | Front access service |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(cd/m²) | 500 | 700 | 800 | 800 | 800-1000 | 1000-1200 |
| Color temperature(K) | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional |
| Grey scale(bit) | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional |
| Viewing angle(V/H) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Brightness/Color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| contrast | 6000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Frequency rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive mode | 1/40Scan | 1/32 Scan | 1/25 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Max power consumption(w/m²) | 480 | 600 | 600 | 600 | 600 | 800 |
| Avg. power consumption(w/m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
