Transparent LED Display
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P10.42-10.42mm |

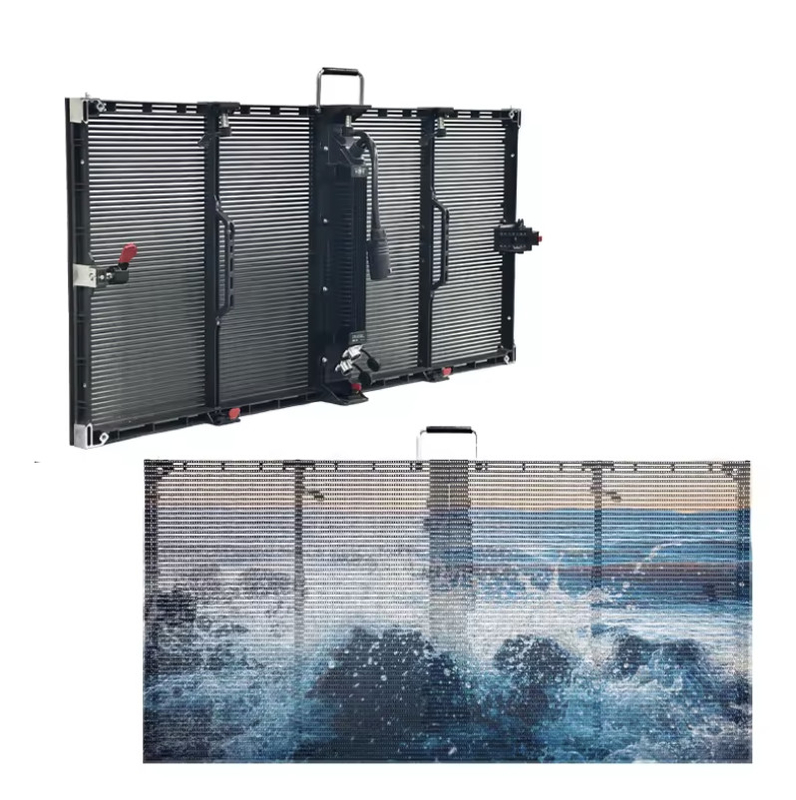

Outdoor SMD2727 Crystal Series Fixed Outdoor transparent LED display P10.42-10.42mm
Quick details:
1. Pixel Pitch: 10.42-10.42mm
2. SMD2727, high brightness 5500-6000nits(can customize up to 10000nits)) and high refresh rate 3840Hz
3. Greyscale: 16bits
4. Cabinet size: 1000x1000mm/1000×500mm
5. Recommended Viewing Distance: 10m.
6. Cabinet Material: Aluminum Cabinet, 18kg/㎡ Weight
7. Refresh Rate: 3840Hz
8. Quality Certificate:CE, RoHS,FCC, ETL
9. Brightness:>5500cd/sqm
10. Quick Installation: Yes, can be hung from the ceiling or mount to the wall
Specification
|
Product Unit Parameters Parameters |
|
| Mode | P10.42-10.42mm |
| LEDs | 1R1G1B |
| LED type | SMD2727 |
| Pixel pitch | 10.42-10.42mm |
| Unit size | W1000×H1000mm |
| Unit resolution | 96×96 dots |
| Resolution | 9,216dots/㎡ |
| Unit direction | Vertical Horizontal |
| Brightness | ≥5500nit |
| Weight | 18KG/㎡ |
| Max consumption | ≤800W/㎡ |
| Adv consumption | ≤260W/㎡ |
| Viewing angle | H120°/V120° |
| Protection level | IP65 |
| Thickness | 82mm |
|
Heat dissipation |
Convective heat dissipation |
| Power supply | Power supply with PFC |
| Installation | Fast install |
| Service | Front&Back |
| Control mode | steady state |
| Color temperature | 3200-9300K |
| Refresh rate | 3840Hz |
| Working temperature | -40℃ to 70℃ |
| Storage temperature | -55℃ to 120℃ |
| Life time | ≥100,000 hours |
| Input voltage | AC110-220V, 50~60Hz |
| Grey grade | 16bit |
Description:
The Crystal Series fixed outdoor transparent LED display is a multi-functional outdoor advertising display, classic appearance, high brightness, high refresh rate, perfect waterproof performance(lP65), disassemble or assemble the mask according to use occasion, really achieve multiple uses on one screen. Could be widely used in different outdoor environments.
1. Transparent LED display, thin and beautiful, the building load-bearing requirements are relatively low, do not light up the case, does not affect the building appearance;
2. High permeability to ensure that the shopping mall between floors, glass facade, windows and other lighting structure lighting requirements while having good heat dissipation, and easy to install and maintain.
3. In the broadcast advertising, in the design of advertising content screen, the unnecessary background color will be removed, replaced by black, only the content expressed in the display, play the appropriate part does not light, that is, the transparent effect, this broadcast method greatly reduces light pollution, but also to cut energy consumption, can be completed than the conventional LED display energy saving more than 30%.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the service work?
A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.
A: Wall mounting with metal structures or hanging from ceiling
A: Low MOQ, modules or complete screen orders are all welcome.
A: Air freight, sea and train transport according to different regions.
A: Mostly we accept telegraphic transfer, 50% before production and 50% balance before shipment.
A: We manage quality starting from incoming material, all LEDs, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure of stable quality and performance.
A: We provide 1-3 years warranty for different products. Free Repair or Exchange of Defective Parts with One-way Shipping
