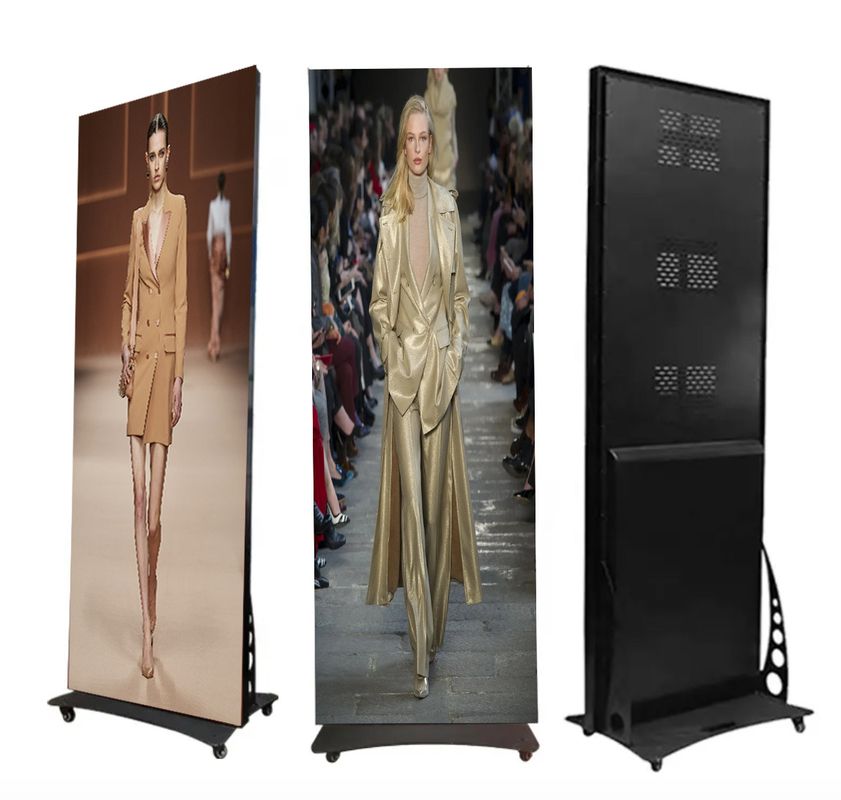

Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display
  • Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display
  • Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display
  • Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display
  • Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display

Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display

Place of Origin China
Brand Name TBC LED
Certification FCC, CE, ROHS
Model Number P1.25
Product Details
Type:
Indoor P2.5 LED Poster Display
Pixel Pitch:
P2.5mm
Cabinet Size:
640x1920mm
Service:
Front Service
Weight:
20kg
Refresh Rate:
3840Hz
Highlight:

P2.5mm LED Poster Display

,

640x1920 LED Poster Display

,

3840Hz LED Poster Display

Product Description

Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display



Indoor P2.5mm LED Poster Display 640x1920mm 3840Hz with Base and Wheel



Indoor P2.5mm LED Poster Screen Shopping Mall Advertising Panels High Refresh Rate 3840Hz​



The Application of P2.5mm Indoor LED Poster Display


The LED poster screen, often referred to as the "mirror screen", is an evolved product and also a subdivision of the small-pitch LED display.
The LED poster display screen presents static pictures in a time-series switching manner, which is a subversion of the original dynamic playback and audio-visual mode of the LED "mirror screen". Currently, the LED poster display is rapidly entering the commercial display market and replacing a portion of LCDs, becoming a magic tool for many businesses to create a shopping environment, and also promoting the development of the LED display in the era of commercial display in the market.
It is a new type of trendy and consumer-oriented dynamic advertising media. Users can achieve centralized control, management, and multimedia content transmission through 4G and WiFi unlimited functions, and also under the high refresh rate of the control system, it can display beautiful dynamic graphics, bringing a novel visual experience.



Quick detail Of P2.5mm Indoor LED Poster Display



1, Pixel Pitch: 2.5mm
2, SMD1515 LED, high contrast and high refresh rate
3, Greyscale: 16bits
4, Cabinet size: 640x1920mm Die Cast Aluminum
5, Recommended Viewing Distance: 1-3m.

6, Cabinet Material: Aluminum Cabinet, 20kg Light Weight

7, Refresh Rate: 3840Hz

8, Quality Certificate:CE, RoHS,FCC, ETL

9, Brightness:>600-800cd/sqm

10, Quick Installation: Yes, fast side lock for quick assembly and disassembly



Specification Of P2.5mm Indoor LED Poster Display



Product Unit Parameters

Parameters

Mode P2.5mm
LEDs 1R1G1B
LED type SMD1515
Pixel pitch 2.5mm
Unit size W640×H1920mm
Unit resolution 256×768 dots
Resolution 640,000dots/㎡
Unit direction Vertical Horizontal
Brightness ≥600-800nit
Weight 26KG/㎡
Max consumption 500W/㎡
Adv consumption 230W/㎡
Viewing angle H120°/V120°
Protection level IP43
Thickness 80mm

Heat dissipation



Convective heat dissipation
Power supply Power supply with PFC
Installation Fast install
Service Front
Control mode steady state
Color temperature 3200-9300K
Refresh rate 60Hz
Working temperature -40℃ to 70℃
Storage temperature -55℃ to 120℃
Life time ≥100,000 hours
Input voltage AC110-220V
Grey grade 16bit





Characteristics of P2.5mm Indoor LED Poster Display

1. The screen body is lightweight and thin, with front maintenance. The appearance design shows a high-end and elegant atmosphere, being fashionable and innovative. It has flexible installation methods and can fulfill the installation requirements of various application scenarios.
The LED poster display can be freely spliced, so it is larger than traditional LCD and DLP, and has a broader viewing angle, thus being more eye-catching and having a stronger visual impact.
2. In the static state, the requirements for color and clarity are more prominent than the performance of dynamic video.
3. It has stability, being able to make the static picture jump within a few seconds without the occurrence of inconsistent speeds. There is also stability in controlling the management system and information release.



Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display 0Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display 1Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display 2Indoor P2.5mm Creative LED Display 640x1920 3840Hz LED Poster Display 3







Our Offerings

1. A professional led display producer with 10 years of experience.
2. Swift delivery period: 5 to 15 working days, which can be adjusted as per the customer's requirement.
3. Wholesale rates.
4. OEM and ODM services provided.
5. Product can be customized as per request.



FAQ

Q1. How does the service operate?
A: We possess seasoned Engineers who have been in the field for 15 years and are capable of communicating in fluent English. They can offer technical support remotely through video conferencing or TeamViewer, or they can also go to the site for guidance.
Q2. What kinds of installation choices do we offer?
A: Mounting on the wall with metallic structures.
Q3. Is there any minimum order quantity limit for the led screen order?
A: There is a low minimum order quantity, and both module and complete screen orders are all acceptable.
Q4. What is the shipping approach?
A: Air transportation, sea and rail transport depending on different regions.
Q5. What is the payment mode?
A: Generally, we accept telegraphic transfer, with 50% before production and 50% of the balance prior to shipment.
Q6. How do you oversee the production quality?
A: We control the quality starting from the incoming materials. All LEDs, ICs, and PSUs are pre-inspected before entering the production line.
The modules and the complete screen will undergo at least 72 hours of aging tests to ensure stable quality and performance.
Q7: How does the warranty function?
A: We offer 1 to 3 years of warranty for different products. Free repair or exchange of defective parts along with one-way shipping.
