HD LED Display
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P0.93mm, 1.25mm, 1.56mm, 1.87mm |
High refesh rate ultra HD LED screen to to deliver high definition visual experience.
Light & Slim Ever
52mm-extreme-thin cabinet weight only 6.9kg/pc, greatly saves steel structure and handling cost
16:9 Golden Ratio, Gorgeous Display
16:9 golden ratio brilliantly matches mainstream HD/4K/8K videos while maintaining pixel-to-pixel broadcasting

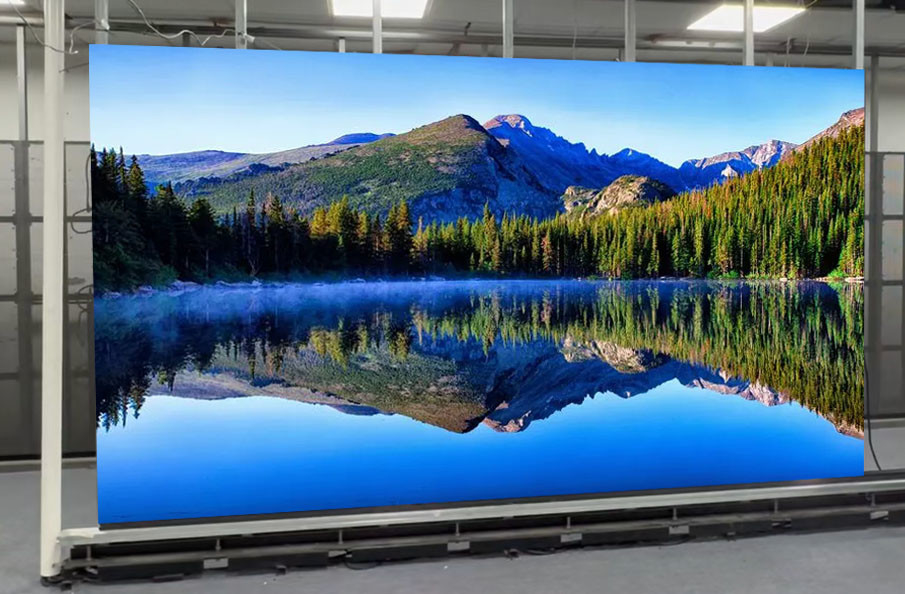

Quadruple Backup, Never Blackout
Diamond Series allows multiple backup including power, receiving cards, power connectors, & signal connectors. The quadruple backup ensures never a blackout in the normal case.
Fast & Easy Installation & Maintenance
Fast interlock enables 1-second quick installation including wall-mounting, hanging, and stacking. Full front maintenance saves space & time.
| Diamond 0.93mm | Diamond 1.25mm | Diamond 1.56mm | Diamond 1.87mm | |
| Pixel Pitch | 0.93mm | 1.25mm | 1.56mm | 1.87mm |
| Pixel Configuration | Mini LED | SMD1010 | SMD1212 | SMD1515 |
| Pixel Density | 1,137,778 pixels/m2 | 640,000 pixels/m2 | 409,600 pixels/m2 | 285,204 pixels/m2 |
| Module Dimensions(W x H) (mm) | 300 x 168.75 | 300 x 168.75 | 300 x 168.75 | 300 x 168.75 |
| Panel Dimensions (mm) |
600 x 337.5 x 52 |
600 x 337.5 x 52 |
600 x 337.5 x 52 |
600 x 337.5 x 52 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 320 x 180 | 240 x 135 | 192 x 108 | 160 x 90 |
| Cabinet Resolution | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 6.9kg | 6.9kg | 6.9kg | 6.9kg |
| Digital Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel | 650 W /panel |
| Brightness | >500 nits | >600 nits | >600 nits | >800 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 45 | IP 45 | IP 45 | IP 45 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/60 Scan | 1/60 Scan | 1/64 Scan | 1/45 Scan |
Are you tired of attending events with lackluster decorations and uninspiring visuals? Well, get ready to have your mind blown and your senses dazzled as we delve into the world of event LED displays. These innovative and vibrant displays are revolutionizing the way we experience events, taking them to a whole new level.
With their bright colors, sharp images, and dynamic visuals, event LED displays create an immersive and captivating environment that leaves attendees in awe. Whether it's a conference, concert, or trade show, these displays have the power to transport you into a different realm, where the boundaries between reality and imagination blur.
Not only are event LED displays visually stunning, but they also offer endless creative possibilities. From dynamic animations to personalized messages, these displays can be fully customized to reflect the theme and branding of the event. This level of personalization creates a memorable and unique experience for attendees, enhancing engagement and leaving a lasting impression.
Gone are the days of dull and uninspiring event visuals. Thanks to event LED displays, the future of event experiences is brighter and more captivating than ever before. So, get ready to be amazed and prepare for an event experience like no other!
