Curved LED Screen
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P3 |

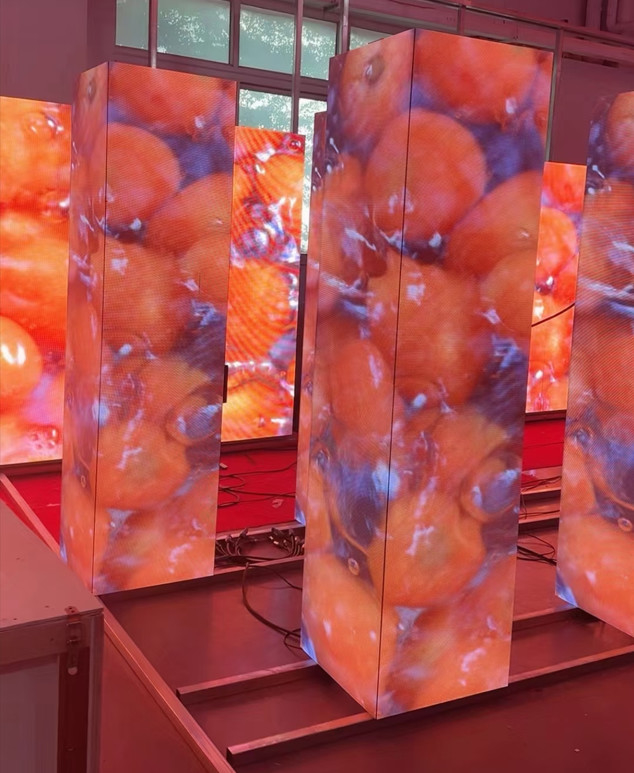

Indoor P3mm Curved LED Screen Soft LED Module 2880Hz Front Magnetic Maintenance
Application Of Soft LED Display
As is well known, flexible LED display screens are a type of LED display screen that can be bent arbitrarily without damage. The circuit board is made of a special flexible material that will not be bent or damaged. The advantage of LED flexible screens is that they can cover a large arc, making them more convenient to assemble. Especially for irregularly shaped displays, the advantages of flexible screens are more prominent, so their application range is also more extensive. So, in what fields can flexible LED displays be applied?
The application fields of flexible LED display screens are as follows:
1. Exhibition Hall
Many companies often install LED display screens with special shapes to decorate their showrooms and make them look more beautiful and eye-catching, and then play various video content. These creative shaped LED display screens are usually made of flexible LED display screens.
2. Entertainment venues
Many entertainment venues are equipped with circular and oval LED display screens for decoration, and the content of the display screens can be played according to different themes, rendering the atmosphere. Some entertainment venues also make flexible LED displays into LED bar screens, wavy LED screens, fan-shaped LED screens, flowing LED tile screens, and so on, all of which are mainly used for decoration.
3. Large shopping malls and shopping centers
As mentioned earlier, when we stroll around large shopping malls, we will see many LED display screens of different shapes, or some LED pillar screens, LED spherical screens, etc., which are mainly made of flexible LED display screens.
In addition, for some special shaped flexible LED display screens, such as stage design waveforms, ribbons, etc., flexible LED displays are also used. Therefore, it can be widely used in finance, taxation, industry and commerce, postal and telecommunications, sports, advertising factories and mining enterprises, transportation, education systems, stations, docks, airports, shopping malls, hospitals, hotels, banks, securities markets, construction markets, auction houses, industrial enterprise management and other public places.
Quick detail Of Indoor Flexible LED Screen
1, Pixel Pitch: 1.86mm, 2mm, 2.5mm, 3mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/ 140°.
3, Greyscale: 16bits with NOVA Star MRV328
4, Cabinet size: Customized according to actual application
5, Recommended Viewing Distance: 1-4m.
6, Cabinet Material: Aluminum Cabinet or mount to the steel structure directly
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 Indoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:500-800cd/sqm
11, Curve Installation: Yes, any kind of curve installation
Specification Of Indoor Soft LED Screen
| Pixel Pitch | 1.86mm | 2.5mm | 2mm | 3mm |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 289,050 pixels/m2 | 160,000 pixels/m2 | 250,000 pixels/m2 | 111,111 pixels/m2 |
| Module Dimensions(W x H) (mm) | 320 x 160 | |||
| Module Resolution | 172x86 | 128 x 64 | 160 x 80 | 104 x 52 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per module | 400g | |||
| Digital Processing | 16bit | |||
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >600 nits | >750 nits | >750 nits | >750 nits |
| Refresh Rate | >2,880 Hz | |||
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/43 Scan | 1/32 Scan | 1/40 Scan | 1/26 Scan |
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
1. What is LED?
LED stands for Light Emitting Diode
DIODE, as referred to in the display screen industry, specifically refers to LEDs that can emit visible wavelengths.
2. What is pixel?
The minimum luminous unit of an LED display screen is the same as the pixel in a regular computer monitor.
3. What is pixel spacing (dot spacing)?
The smaller the distance between the centers of two adjacent pixels, the shorter the visible distance. Industry insiders usually refer to P as the distance between points.
4. What is pixel density?
Also known as dot matrix density, it usually refers to the number of pixels per square meter on a display screen.
