Indoor LED Video Wall
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P3 |

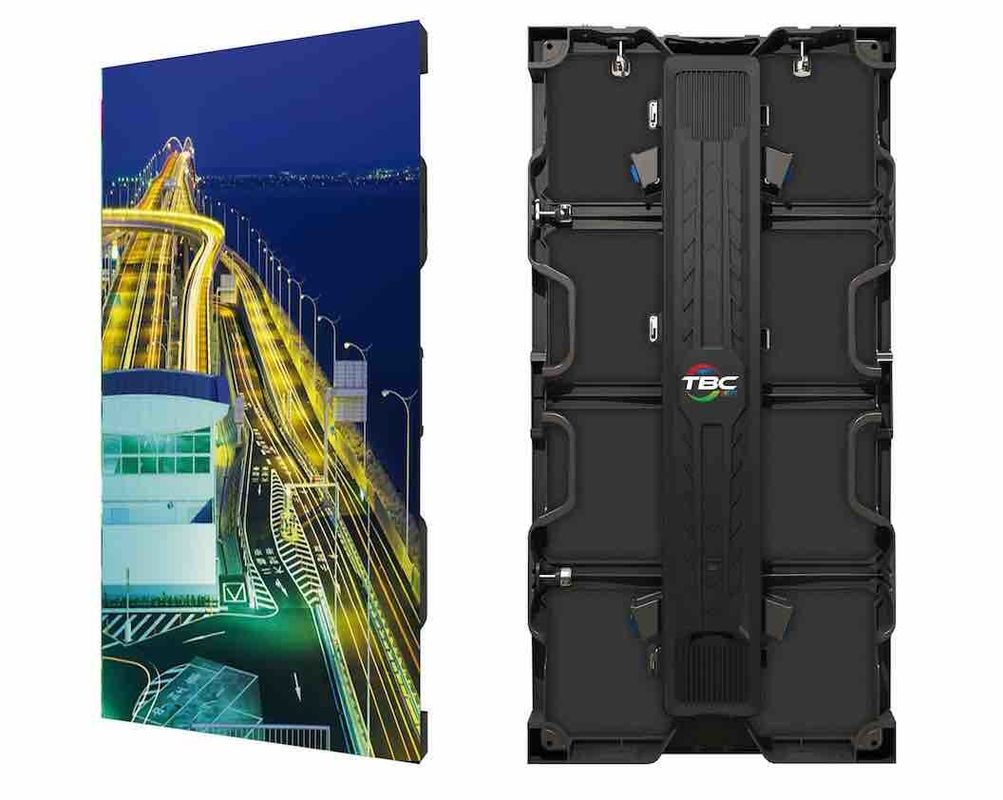

Easy Maintenance Indoor LED Video Wall with Wall Mount Installation
Features
1. High Refresh Rate, Perfect Display
2. Lighweight and Slim
3. Easy installation
4. Front module design
5. High precision
6. Seamless Display
7. Multi size for option, meet your multi application
Advantages
1. Full Front Maintenance
LED display with frontal service. The magnet LED modules can be removed by tools on the front side for only 5 seconds. Easy and convenient, save your cost and labor.
2. Inside Cable Connection Design
Inside cable connection ,can wall mounted directly, no-need leave for after service space.
no wire behind the screen body simple and clean, pleasing to the eye.
3. Seamless Splicing, Excellent display experience
Seamless splicing design with fast locks and simple internal wiring, which perfectly realizes the splicing of the cabinet. The LED display has no gaps and the LED screen is ultra-high flatness.
Quick details
1, Pixel Pitch: 2.5mm, 3mm, 4mm
2, Nation Star or Kinglight SMD LEDs, high contrast and high reliability
3, Greyscale: 16bits
4, Cabinet size: 768x768mm or 960x960mm Steel Wall Mount Cabinet
5, Service type: Magnetic front service
6, PSU: MEANWELL or G energy brand
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 indoor use and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>800-1000cd/sqm
Specifications
| E 2.5 | E 3 | E 4 | E4 | |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 4mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 160,000 pixels/m2 | 111,111 pixels/m2 | 62,500 pixels/m2 | 62,500 pixels/m2 |
| Module Dimensions(W x H) (mm) | 320 x 160 | 192 x 192 | 256 x 128 | 320X160 |
| Panel Dimensions (mm) |
960 x 960 x 100 640 x 480 x 100 |
960 x 960 x 100
|
1024 x 1024 x 100
|
960x960x100 |
| Module Resolution | 168 x 84 | 64 x 64 | 64 x 32 | 80x40 |
| Cabinet Resolution | 384 x 384 | 320 x 320 | 256 x 256 | 240x240 |
| Panel Material | Steel | Steel | Steel | Steel |
| Weight per Cabinet | 26kg | 26kg | 26kg | 26kg |
| Digital Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000:1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel | 650 W /panel |
| Brightness | >8,00 nits | >8,00 nits | >8,00 nits | >7,00 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan | 1/20 Scan |
