HD LED Display
>
|
| Place of Origin | China |
| Brand Name | TBCLED |
| Certification | FCC，CE，ROHS |
| Model Number | HD LCD |

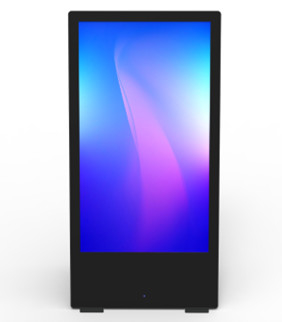

Outdoor Movable 43inch LCD Digital Poster with Battery
|
More than 15 hours |
Foldable and Portable Design It can be operated by a single person. |
|
2000nits | |
|
IP65 Rating | |
|
Android OS | |
|
WIFI | |
|
Tempered Glass |
Lock Bar The advanced locking mechanism ensures the stable placement of the machine, and the movement and placement are simpler and more flexible. |
|
Safety Lock | |
|
UV Proof | |
|
Play Manual | |
| PnP | Insert and play |
Features
|
IP65 rating design The screen is designed with IP65 protection level, which can keep rainwater and debris, dust and other particles in the air out, and can be protected from any wet weather, which greatly expands the application environment. |
High temperature resistant LCD screen Adopt high temperature resistant LCD screen above 100℃, Fully laminating technical solution imported from Germany with water glue, achieve high transparency, increase contrast, and achieve high-definition and high-brightness realistic effects. |
|
|
|
1500-3000 brigthness IPS screen High-brightness LCD panels are more than three times brighter than home TVs, making them ideal for display in outdoor commercial spaces. |
Environmental monitoring system Outdoor environment monitoring system, display battery surface temperature and fan speed, precise heat dissipation control, battery high temperature power off function. |
|
|
|
Battery remaining display The remaining power, output current and voltage can be clearly displayed. It is convenient to arrange the use and charging time of the battery. |
Automatical light sensor system The brightness of the backlight can be automatically adjusted according to the outdoor light, thereby avoiding the problems of dazzling highlights and unclear bottom lights. |
|
|
|
Very long run time Outdoor lithium iron phosphate battery has better lifespan, higher temperature resistance, and high safety factor. The industrial-grade battery solution ensures that the display can work continuously for 15 hours. |
GPR positioning system (optional) Using GPR positioning system, mobile alarm and environmental monitoring software are always displayed |
|
|
Specification
| Item | Panel Size | 43inch TFT-LCD | |
| LCD panel | Resolution | 1920x1080(FHD) | |
| Size of view(mm) | 940.896(H)x 529.254(V) | ||
| Ratio | 16:9 | ||
| Brightness(cd/m2) | 2000(Automatic photosensitivity) | ||
| Color | 16.7M | ||
| Viewing angel | 178° | ||
| Contrast | 4000:1 | ||
| Computer | Formate | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image( JPG, GIF, BMP, PNG) | |
| CPU | RK3288 | ||
| RAM | 2GB DDR4 | ||
| ROM | 8GB NAND(16G option) | ||
| USB | USB2.0 HOST (x2) | ||
| LAN | 10/100M Ethernet | ||
| Wi-Fi | 802.1 1b/g/n | ||
| Operation System | Android 5.1 | ||
| Speaker | 8Ω 5W x2 | ||
| Battery | Battery Technology | Using outdoor lithium iron phosphate battery, it has better lifespan, higher temperature resistance and higher safety factor than ternary battery. | |
| Charging time | 8 hours | ||
| Running time | More than 15 hours | ||
| Capacity | 62000mAh | ||
| Voltage | 24V | ||
| Consumption | 58~110W(Automatic photosensitive power consumption is a variable value) | ||
| power supply(optional) | 110V | 110V | |
| 220V | 220V | ||
| Brightness(optional) | 1500cd/m² | more than 20 hours | |
| 2000cd/m² | more than 15 hours | ||
| Package info. | Product size (WxHxD mm) | 8000mm/3700mm/15100mm | |
| Product Weight(kg) | 55kg | ||
| Working enviroment | Working temp. | -20℃ to 70℃ | |
| Storage Temp. | -30℃ to 80℃ | Max.Temperature 105℃ | |
| Working Hum. | 10% to 80% | ||
| Storage Hum | 5% to 95% | ||
| Accessories | Accessories | Romote contro, Charging adaptor and calbe | |
| Guarantee | Product | 1year | |
| Battery | 1year | ||
| Technical support | Whole life | ||
Dimensions
