| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P10 |

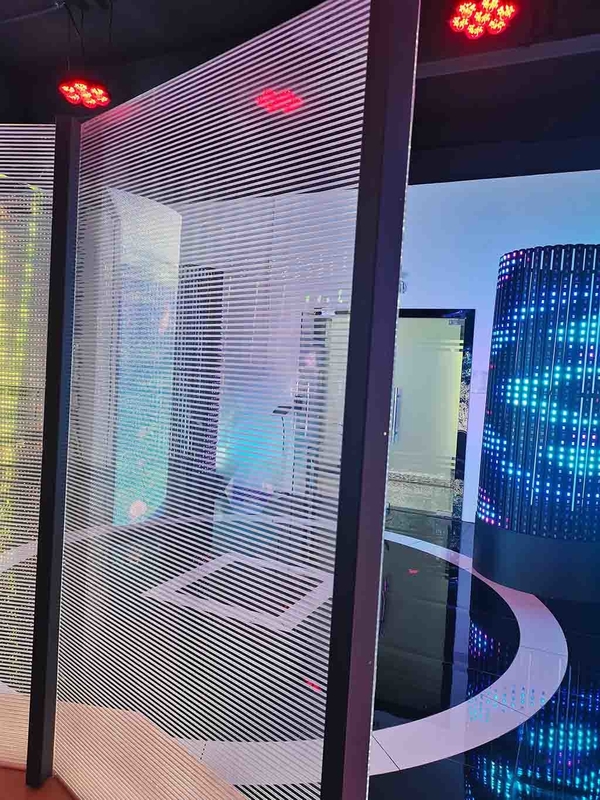

LED Film screen--product features
1. The thinnest thickness is about 3mm,
2. Weight 5kg/ square meter
3. Single-point power: between 0.06W-0.1W (adjusted according to brightness requirements)
4. The maximum size of a single piece: height 960mm-length 1500mm, which can meet the size of a single piece of glass at 3 meters * 3 meters, without structure and power control box in the middle.
LED Film Screen - Installation Instructions
Installation is divided into indoor viewing and outdoor viewing.
The brightness is relatively low, the heat generation is low, and the structure can be installed against the glass, and the film can be directly attached to the glass.
Outdoor viewing: The brightness will be relatively higher, the power of the screen will increase, and the heat generated will also increase. The glass also absorbs the heat of the outdoor sunlight, so the screen body will not be close to the glass during installation, but will be 5-10mm away from the inner surface of the glass. If the installation distance is too far, due to the refraction of light, the effect of viewing the screen display outdoors will not be so good.
LED film screen - product parameters
|
Project |
Unit |
parameter |
parameter |
parameter |
parameter |
|
Product No |
|
DM4/8 |
DM6.5 |
D10 |
D20 |
|
light source model |
SMD |
2121 |
2121 |
2121 |
2121 |
|
Density |
dot/m2 |
31250 |
23668 |
10000 |
2500 |
|
Module Size |
mm |
960(H)X256(W) |
962(H)X208(W) |
960(H)X320(W) |
960(H)X320(W) |
|
Screen compositon |
High transparency,high temperature resistance,flame retardantPC |
||||
|
Weight |
kg/m2 |
6 |
6 |
6 |
6 |
|
Permeability |
|
|
|
|
|
|
Brightness |
cd/m2 |
≥4000 |
≥5000 |
≥5000 |
≥3000 |
|
Refresh |
Hz |
|
|
|
|
|
Scan |
|
stati |
stati |
stati |
stati |
|
Maximum power |
W/m2 |
|
|
|
|
|
average power |
W/m2 |
300 |
300 |
200 |
200 |
|
installation method |
|
|
|
|
|
|
maintenance method |
Pre/Post Maintenance |
||||
|
Brightness Level |
|
256 |
|||
| Operating Voltage | DC5V | ||||
|
gray scale |
bit |
12- 16 |
|||
|
IP |
IP |
IP30 |
|||
|
Viewing angle |
Degree |
Horizontal≥150度, Vertical ≥ 150 |
|||
|
Input voltage |
|
degreesAC95V~240V |
|||
|
Operating temperature |
°C |
-20~65 |
|||
|
Working humidity |
|
10% ~90RH |
|||
|
service life |
1 00000 hours |
||||
