| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P4/8 |
LED Film screen--product features
1.Thin
• The screen is light in weight and has no pressure on the glass,
• Thickness: about 3mm, weight 3-6kg/ square meter
2. Transparent
• The structure is extremely simple, the permeability is high, does not affect the viewing line, and the permeability is as high as 85% or more
3. High flexibility
• The maximum unit size is limited to 960mm*3000mm,
• The maximum size and length of a single glass is 3 meters, without a power box in the middle.

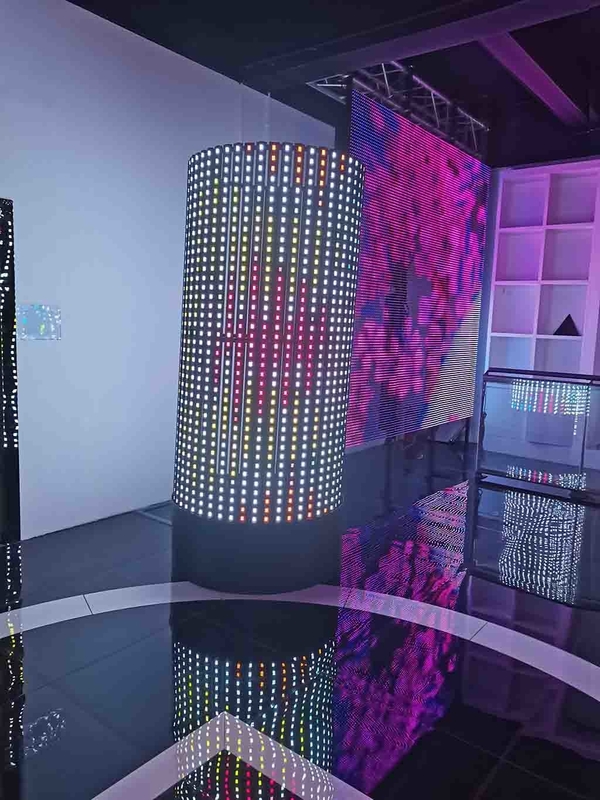

• Can be bent and cut, not limited by size, can be flexibly designed according to customer needs Strong flexibility, can be attached to any curved glass/wall
4. Easy to install
• Easy to install, directly attached to the glass surface, and then just connect the signal and power supply
5. Large viewing angle
• Up to 140 degrees up, down, left, and right fields of view, no dead angle, no color cast, the image is always perfect and seamless
6. Cost saving
• Product installation does not require additional steel frame structure, does not need to change the appearance of ancillary buildings, effectively reducing transportation and installation costs
LED film screen - product parameters
|
Project |
Unit |
parameter |
parameter |
parameter |
parameter |
|
Product No |
|
DM4/8 |
DM6.5 |
D10 |
D20 |
|
light source model |
SMD |
2121 |
2121 |
2121 |
2121 |
|
Density |
dot/m2 |
31250 |
23668 |
10000 |
2500 |
|
Module Size |
mm |
960(H)X256(W) |
962(H)X208(W) |
960(H)X320(W) |
960(H)X320(W) |
|
Screen compositon |
High transparency,high temperature resistance,flame retardantPC |
||||
|
Weight |
kg/m2 |
6 |
6 |
6 |
6 |
|
Permeability |
|
|
|
|
|
|
Brightness |
cd/m2 |
≥4000 |
≥5000 |
≥5000 |
≥3000 |
|
Refresh |
Hz |
|
|
|
|
|
Scan |
|
stati |
stati |
stati |
stati |
|
Maximum power |
W/m2 |
|
|
|
|
|
average power |
W/m2 |
300 |
300 |
200 |
200 |
|
installation method |
|
|
|
|
|
|
maintenance method |
Pre/Post Maintenance |
||||
|
Brightness Level |
|
256 |
|||
| Operating Voltage | DC5V | ||||
|
gray scale |
bit |
12- 16 |
|||
|
IP |
IP |
IP30 |
|||
|
Viewing angle |
Degree |
Horizontal≥150度, Vertical ≥ 150 |
|||
|
Input voltage |
|
degreesAC95V~240V |
|||
|
Operating temperature |
°C |
-20~65 |
|||
|
Working humidity |
|
10% ~90RH |
|||
|
service life |
1 00000 hours |
||||
